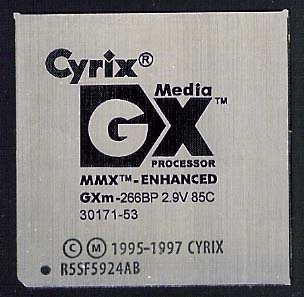

MediaGX > CyrixGXm-266BP-29V-85C

Modified: May 30, 2005, 5:41 pm

Manufacturer:	Cyrix
Model:	GXm-266BP 2.9V 85C
Speed:	266MHz
Type:	MediaGX
Data Code:	9924
Introduced:	1997
Transistors:	2.4 Million
Package:	352 BGA
Process:	0.25 Micron
Architecture:	32 bit CISC (RISC influenced) w/ Sound & Video
Used in:	Integrated PCs
Description:	The MediaGX System consists of two chips-- the MediaGX processor and the MediaGX Cx5510 companion chip. This system eliminates the t raditional audio and video cards, and all AT motherboard components of a PC. The MediaGX processor is a 64-bit data bus, x86-compatible processor with a proven core. The processor has 16 kB L1 cache and an FPU. The CPU directly interfaces to the PCI bus and the DRAM memory. The graphics frame buffer of the built-in sVGA (VESA 2.0) hardware is stored in main memory. Sound Blaster compatible (2x16bit stereo, 48 kHz) hardware and also integrated I/O devices (PCI, ISA, SP, PP) are incorporated in the Cx5510 companion chip. The MediaGX incorporates a 5x86 core with added functions, such as a 64-bit-wide DRAM controller, a PCI-bus interface and a unified memory display controller. the 5x86 is itself a scaled down 6x86. The MediaGX is why National bought Cyrix. Later AMD bought the GX (then the Geode) from National and it continues to be made today. ------------------------------------------------- Bus Speed: 33MHz Memory: 88MHz Multiplier: 8 Fab'd by: National -------------------------------------------------
