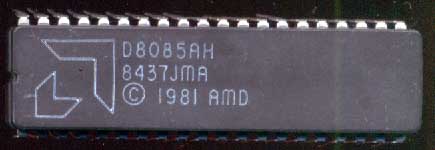

808x > AMDD8085AH

Modified: March 11, 2005, 11:12 pm

Manufacturer:	AMD
Model:	D8085AH
Speed:	3MHz
Type:	8085
Data Code:	8437
Introduced:	1976
Transistors:	6500
Package:	40CDIP
Process:	3 Micron
Architecture:	8 bit
Used in:	Control applications and Radio Shack TRS-80 Models 100 and 200, CompuPro 8/16.
Description:	. Intel 8085 microprocessor is the next generation of Intel 8080. In addition to being faster than the 8080, the 8085 had the following enhancements : Single 5V power supply. On-chip integrated peripherals: clock oscillator and system controller. Serial I/O port. New instructions, most of them were undocumented. AMD was a main second source to Intel.
