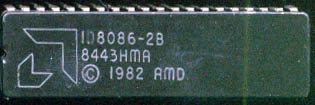

808x > AMDID8086-2B

Modified: March 11, 2005, 10:46 pm

Manufacturer:	AMD
Model:	ID8086-2B
Speed:	8MHz
Type:	8086
Data Code:	8443
Introduced:	1978
Transistors:	29,000
Package:	40CDIP
Process:	3 Micron
Architecture:	16 bit x86
Used in:	Industrial Controllers.
Description:	. Intel 8086 microprocessor is a first member of x86 family of processors. Advertised as a "source- code compatible" with Intel 8080 and Intel 8085 processors, the 8086 was not object code compatible with them. The 8086 had complete 16- bit architecture - 16-bit internal registers, 16- bit data bus, and 20-bit address bus (1 MB of physical memory). Because the processor had 16- bit index registers and memory pointers, it could effectively address only 64 KB of memory. To address memory beyond 64 KB the Intel 8086 used segment registers - these registers specified where code, stack data and extra data 64 KB segments are located within 1 MB of total processor memory. To accommodate this awkward memory addressing many 8086 compilers included 6 different memory models: tiny, small, compact, medium, large and huge. 64 KB direct addressing limitation went away with the introduction of the 32-bit protected mode in Intel 80386 processor. AMD was a second source to Intel, often overtaking them in production. This is an industrial grade chip with a greater temperature rating then a commercial chip. It also has burn in screening.
