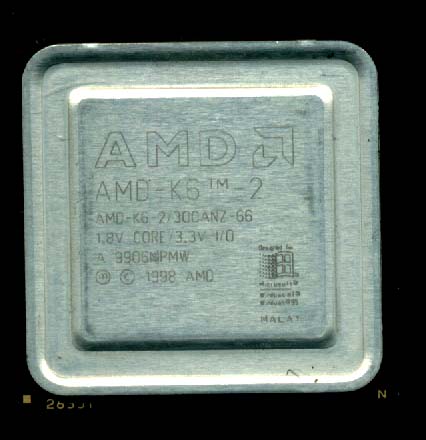

K6-2 > AMDK6-2-300ANZ-66

Modified: March 13, 2005, 5:33 pm

Manufacturer:	AMD
Model:	AMD-K6-2/300ANZ-66
Speed:	300MHz
Type:	K6-2
Data Code:	9906
Introduced:	1998
Transistors:	9.3 Million
Package:	321 Ceramic SPGA w/ Heatspreader
Process:	0.25 Micron
Architecture:	32 bit CISC translated to RISC86 w/ 3D Now!
Used in:	Laptop computers
Description:	The K6-2 was based on the Nexgen 686. AMD bought Nexgen and used there RISC86 core which allowed much higher speeds then the old K5 core. The K6-2 is merely an enhanced K6. It included 3d Now! which is 21 addictional instructions for FPU intensive tasks. It scaled in speed from 200MHz to over 550Mhz Extending the life of the socket 7 platform by several years. It was also made in mobile and embedded versions (lower voltage and higher temperature tolerance.). It also used bussed from 66-100Mhz. Temp Spec: 85C Bus: 66MHz This is the Mobile version
