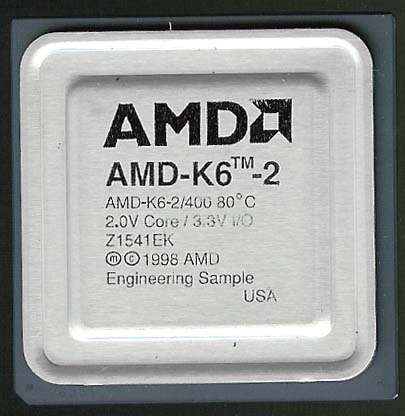

K6-2 > AMDK6-2-400-85C-20V-ES

Modified: May 23, 2005, 5:46 pm

Manufacturer:	AMD
Model:	K6-2/400 80C
Speed:	400MHz
Type:	K6-2
Data Code:	99??
Introduced:	1997
Transistors:	9.3 Million
Package:	321 Ceramic SPGA w/ Heatspreader
Process:	0.25 Micron
Architecture:	32 bit CISC on RISC86
Used in:	Computers
Description:	The K6-2 was based on the Nexgen 686. AMD bought Nexgen and used there RISC86 core which allowed much higher speeds then the old K5 core. The K6-2 is merely an enhanced K6. It included 3d Now! which is 21 addictional instructions for FPU intensive tasks. It scaled in speed from 200MHz to over 550Mhz Extending the life of the socket 7 platform by several years. It was also made in mobile and embedded versions (lower voltage and higher temperature tolerance.). It also used busses from 66-100Mhz. Temp Spec: 70C Bus: 100MHz Starting with he 400 a new core was released the 'CXT' core was faster and more efficient in its caching routines. This is an Engineering Sample. The 400 was the most common engineering sample, as it preceeded the relsease of the new core.
