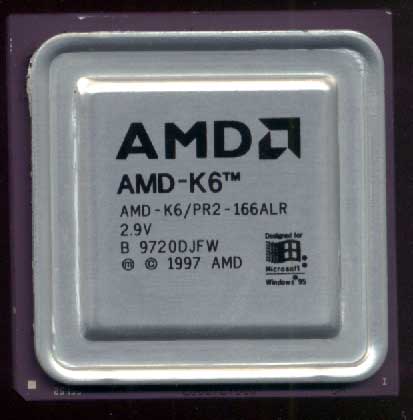

K6 > AMDK6PR2-166ALR

Modified: March 13, 2005, 5:08 pm

Manufacturer:	AMD
Model:	AMD-K6/PR2-166ALR
Speed:	166MHz
Type:	K6
Data Code:	9720
Introduced:	1997
Transistors:	8.8 Million
Package:	321 Ceramic SPGA w/ Heatspreader
Process:	0.35 Micron
Architecture:	32 bit CISC translated to RISC86
Used in:	Computers
Description:	The K6 was based on the Nexgen 686. AMD bought Nexgen and used there RISC86 core which allowed much higher speeds then the old K5 core. K6's were made on 0.35 micron process originally and then moved to 0.25 micron in 1998. For a while AMD used a PR rating to equate the K6 to the Pentium II, but since the PR was the same as the actual speed, it was dropped. This is a 0.35 micron part. Temp rating: 70 degrees C This is one of the early chips with a PR2 Rating.
