AMI > AMIS6800

Modified: March 15, 2005, 10:17 pm

Manufacturer:	AMI
Model:	S6800
Speed:	1 MHz
Type:	6800
Data Code:	8430
Introduced:	1974
Transistors:	6800
Package:	CerDIP40
Process:	3 Micron
Architecture:	8 bit
Used in:	Control applications and Computers

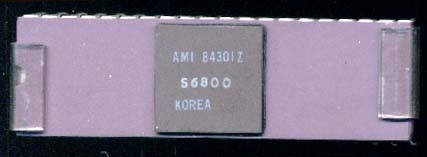

Description:	Motorola 6800 is a 8-bit microprocessor which was released at about the same time as Intel 8080. The 6800 had 16-bit address bus and could address up to 64 KB of memory. From common registers the CPU had only two accumulators and one index register. The 6800 didn't have I/O instructions and therefore 6800-based systems had to use memory-mapped I/O for input/output capabilities. Motorola 6800 started the big family of 680x microcontrolers and microprocessors, some of which are still produced today The purple black package is one of the nicest looking around. It is also very uncommon this late in production (1984).
