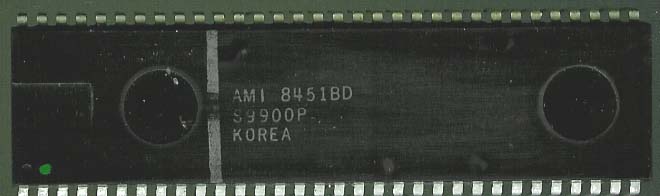

AMI > AMIS9900P

Modified: May 23, 2005, 6:05 pm

Manufacturer:	AMI
Model:	S9900P
Speed:	3.3MHz
Type:	TMS 9900
Data Code:	8451
Introduced:	1976
Transistors:	??
Package:	64PDIP
Process:	6 Micron
Architecture:	16 bit
Used in:	TI 99/4 and other systems
Description:	The TMS9900 COU was the first 16-bit microprocessor that could effectively compete in the computer market. In fact the TMS9900 is a single chip implementation of the TM Seiries 990 minicomputer CPUs. The 9900 has a seperate 16 bit address bus and a 16 bit data bus in a 64 pin DIP. The 9980 has an 8 bit data bus and 14 bit addressbus but is otherwise the same. The 9940 is a one-chip solution with onboard memory and real-time clock circuit. AMI is the only known second source for this chip.
