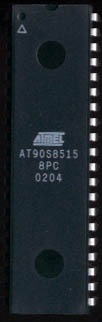

Atmel > AtmelAT90S8515-8PC

Modified: May 15, 2005, 8:03 pm

Manufacturer:	Atmel
Model:	AT90S85155-8PC
Speed:	8MHz
Type:	MCS-51 / AVR
Data Code:	0204
Introduced:	??
Transistors:	??
Package:	40PDIP
Process:	??
Architecture:	8 bit AVR RISC 8051 pinout
Used in:	Control applications
Description:	The AT90S8515 is a low voltage (2.7V - 6V), high performance CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. A rich instruction set is combined with 32 general purpose working registers. Each register is connected to the ALU, allowing two independent registers to be accessed in a single instruction. This allows additions, subtractions, comparisions to be completed in a single clock cycle. The AT90S8515 is a powerful microcomputer which provides a highly flexible and cost effective solution to many embedded control applications. The AT90S8515 provides the following features: ~ 8K bytes of Flash Memory ~ 512 bytes of EEPROM! ~ 512 bytes of Internal Ram ~ 32 I/O lines ~ one 8 bit timer/counter ~ one16-bit timer/counter ~ Programmable Serial UART ~ Dual 10 bit PWM ~ Analog Comparator ~ 8051 Pin Compatible In addition, the AT90S8515 is designed with static logic for operation down to zero frequency. Also, the I/O lines have programmable internal pull up resistors which can be individually enabled for greater flexibility.
