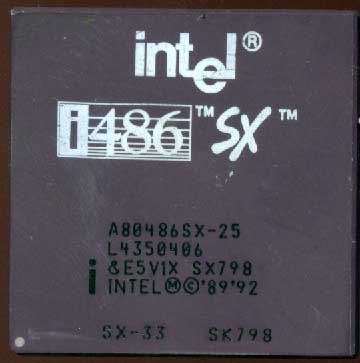

8048x > IntelA80486SX-25-33

Modified: April 23, 2005, 4:27 pm

Manufacturer:	Intel
Model:	A80486SX-25
Speed:	33MHz Max
Type:	80486
Data Code:	9435
Introduced:	1989
Transistors:	1.2 million
Package:	168CPGA
Process:	1 Micron
Architecture:	32 bit CISC
Used in:	Computers
Description:	The successor to the 80386 processor, Intel 80486 (i486) added new important features: Floating Point Unit was integrated with the processor Internal clock doubling and tripling allowed the processor to run much faster in existing motherboards. Power management features and SMM (System Management Mode) became a standard feature of the processor. Instruction set optimization resulted in even greater performance of the processor. Different versions of the 80486 were produced, two most common versions are 80486DX with integrated FPU, and 80486SX without FPU. The Intel 80486 was produced at speeds up to 100 MHz. AMD produced even faster 120 and 133 MHz versions of the 80486. Early SX chips had the FPU disabled, later ones had it removed from the die completely, saving 400,000 transistors. DX/SX = 1x Multyplier (8k Cache) DX2/SX2 = 2 x Multyplier (8k Cache) DX4 = 3x Multiplier (16K Cache) Bus Speed: 33MHz This SX has been requalified by Intel for 33MHz operation. This is a very late SX chip which means Intel probably had a special contract to fill. The FPU is disabled in this SX.
