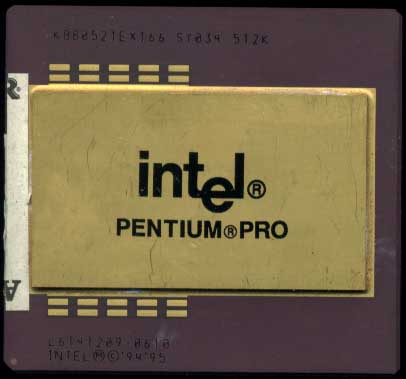

80521 > IntelKB80521EX-166-512k

Modified: April 23, 2005, 8:08 pm

Manufacturer:	Intel
Model:	KB80521EX-166
Speed:	166MHz
Type:	Pentium Pro
Data Code:	9614
Introduced:	1995
Transistors:	5.5 Million
Package:	387 Modified SCPGA
Process:	0.35 Micron
Architecture:	32 bit CISC
Used in:	Servers
Description:	Intel Pentium Pro was the first processor from the Intel Pentium II processor family. Targeted for the server and workstation market, the Pentium Pro included integrated 256KB, 512 KB or 1 MB L2 cache running at the processor speed. The L2 cache in the Pentium Pro was not located on the same die as the CPU core. The CPU was packaged in a "dual cavity" package, where one cavity contained the processor die and another contained the L2 cache. As all other members of the Pentium 2 family, the Pentium Pro was optimized to run 32-bit applications and, when running in 32-bit mode, it significantly outperformed Pentium and Pentium MMX CPUs at the same clock speed. At the same time Pentium Pro performance with 16-bit applications was poor, and often the processor was slightly slower than similarly clocked Pentium/Pentium MMX processors. Poor performance of the Pentium II core with 16- bit applications was fixed in the desktop Pentium II CPU. The Pentium Pro processor was the only processor from the Pentium II family that didn't have MMX instructions. Cache: 512K Bus: 66MHz Retail-Boxed/OEM: OEM
