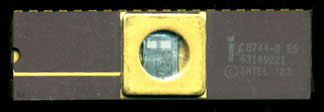

8x44 > IntelC8744-8ES
Modified: May 7, 2005, 11:10 pm
Manufacturer:Intel
Model:C8744-8
Speed:8MHz
Type:MCS-51
Data Code:8325
Introduced:1980
Transistors:??
Package:40CDIP w/ Gold Lid
Process:3 Micron
Architecture:8 bit MCU
Used in:Control applications
Description:The MCS-51 Family includes 2 timers and
4 ports as well as 128bytes or more of
on board RAM. The 51 is one of the most
popular MCUs on the market.
It is now being made in speeds of up to
100MHz by SiLabs, while Intel continues to
make them up to 33MHz.


MCS-51
8031 128*8 RAM ROMless
8032 256*8 RAM ROMless
8044 192*8 RAM 64K*8 ROM RUPI Serial
8051 128*8 RAM 4k*8 ROM
8052 256*8 RAM 8K*8 ROM
8053 128*8 RAM 8k*8 ROM
8054 256*8 RAM 16k*8 ROM
8058 256*8 RAM 32k*8 ROM
-------------------------
This is a very rare Engineering Evaluation Sample
