AMD K6x (K6 K6-2 K6-3 and mobile variants) ID guide
The AMD K6 family of CPUs comes in MANY versions with varying core voltages, temperature ratings and packages. This guide will help you establish which version of the CPU you have. It is also useful in finding what CPUs you want or need for your collection. Please note that the speeds marked on mobile chips are maximum speeds. This is due to the speed scaling used to increase battery life. It is not a true 'Performance Rating' as the chips actually ARE capable of running at the speed (and do when running on AC).

AMD K6
AMD K6-2
AMD K6-3

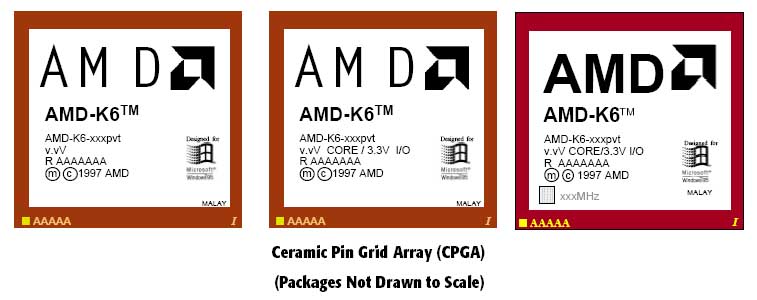

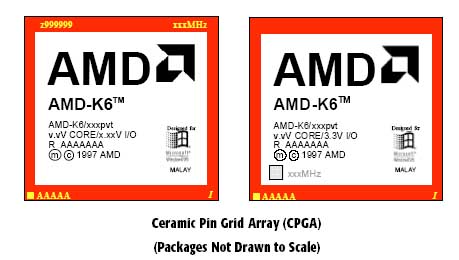

AMD K6 and K6 Mobile Markings, Stepping and ID
Code Name HA (Nexgen 6x86 .30u) Model 6
Code Name Little Foot (shrink to .25u) Model 7

AMD-K6-xxxpvt

xxx = operating frequency (Performance rating for mobile chips)
166, 200, 233, 266, 300 (all 66MHz FSB)

p = package type
A = 321 pin CPGA
B = 360 pin BPGA Mobile

v = Operating Voltage
C = 1.9 V–2.1 V (Core) / 3.135 V–3.6 V (I/O) Mobile
D = 2.0 V–2.2 V (Core) / 3.135 V–3.6 V (I/O) Mobile
F = 2.1 V–2.3 V (Core) / 3.135 V–3.6 V (I/O)
L = 2.755-3.045V (Core) / 3.135 V - 3.6 V (I/O)
N = 3.1 V-3.3V (Core) / 3.135 V - 3.6 V (I/O)
P = 3.2V-3.4V (Core) / 3.135V-3.6V (I/O)

t = Maximum Case Temperature
R = 0°C – 70°C
Z = 0°C – 85°C (Mobile)

v.vV = Core Voltage, where:
2.9V = 2.9V Component
3.2V = 3.2V Component

x.xxV = I/O Voltage, where:
3.3V = 3.3V Component
3.45V = 3.45V Component

R AAAAAAA
R = Revision
B = Revision B
C = Revision C
etc.
AAAAAAA = Internally-Defined

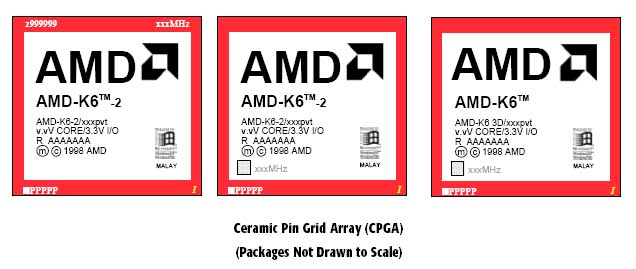

AMD K6-2 and K6-2+ Mobile Markings, Stepping and ID
Code Name Chomper Model 8
K6-2+ = Model 13
Note: With the 400MHz version came the enhanced CXT core.

xxxpvt

xxx = Operating Frequency
(PR on K6-2+ due to speed scaling)

200 (66)
233 (66)
266 (66)
300 (66/100)
333 (95)

337 (75)
350 (100)
366 (66)
380 (95)

400 (100)
433 (66)
450 (100)
475 (95)

500 (100)
533 (97)
550 (100)
570 (95)

p = Package Type
A = 321-pin PGA

v = Operating Voltage
C = 1.9 V–2.1 V (Core) / 3.135 V–3.6 V (I/O) (K6-2+ Only)
F = 2.1 V -2.3 V (Core) / 3.135 V- 3.6 V (I/O)
G = 2.2 V–2.4 V (Core) / 3.135 V–3.6 V (I/O)
H = 2.3 V–2.5 V (Core) / 3.135 V–3.6 V (I/O)
M = 1.8 V–2.0 V (Core) / 3.135 V–3.6 V (I/O)
N = 1.7 V–1.9 V (Core) / 3.135 V–3.6 V (I/O)

t = Maximum Case Temperature
Q= 0°C–60°C
R = 0°C–70°C
X = 0°C–65°C
K = 0°C–80°C
Z = 0°C–85°C (K6-2+ Only)

v.vV = Core Voltage, where:
2.2V = 2.2V Component

R AAAAAAA
R = Revision
A = Revision A
B = Revision B
AAAAAAA = Internally-Defined

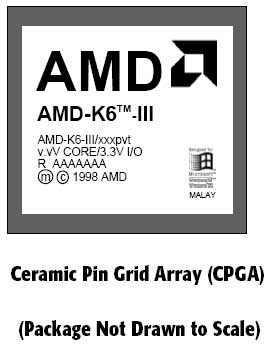

AMD K6-3, K6-3+ and K6-3-P Markings, Stepping and ID
K6-3 Codename Sharptooth Model 9
K6-3+ = Model 13

xxxpvt

xxx = Operating Frequency
(PR on K6-3+ and K6-3-P due to speed scaling)
K6-3-P ALWAYS will have a 'K' Temp rating

K6-3
333
400
450

K6-3+
450
475
500

K6-3-P
350 366
380 400
433 450

p = Package Type
A = 321-pin PGA

v = Operating Voltage
C = 1.9 V – 2.1 V (Core) / 3.135 V – 3.6 V (I/O) (K6-3+/P Only)
F = 2.1 V – 2.3 V (Core) / 3.135 V – 3.6 V (I/O)
H = 2.3 V - 2.5 V (Core) / 3.135 V - 3.6 V (I/O)

t = Maximum Case Temperature
K = 0°C–80°C (K6-3-P Only)
R = 0°C–70°C
X = 0°C–65°C
Z = 0°C–85°C (K6-3+ Only)

v.vV = Core Voltage, where:
2.4V = 2.4V Component

R AAAAAAA
R = Revision
A = Revision A
B = Revision B
etc.
AAAAAAA = Internally-defined

If you know of any more K6 ID info etc. Please e-mail me and I will add it.
