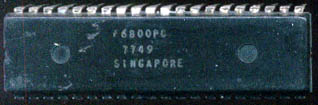

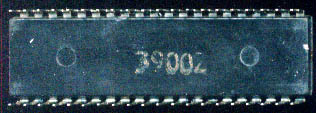

Fairchild > Fairchild6800P
Modified: May 25, 2005, 3:08 am
Manufacturer:Fairchild
Model:F6800PL
Speed:1 MHz
Type:6800
Data Code:7749
Introduced:1974
Transistors:6800
Package:40PDIP
Process:3 Micron
Architecture:8 bit
Used in:Computers
Description:Motorola 6800 is a 8-bit microprocessor which was
released at about the same time as Intel 8080.
The 6800 had 16-bit address bus and could address
up to 64 KB of memory. From common registers the
CPU had only two accumulators and one index
register. The 6800 didn't have I/O instructions
and therefore 6800-based systems had to use
memory-mapped I/O for input/output capabilities.
Motorola 6800 started the big family of 680x
microcontrolers and microprocessors, some of
which are still produced today
